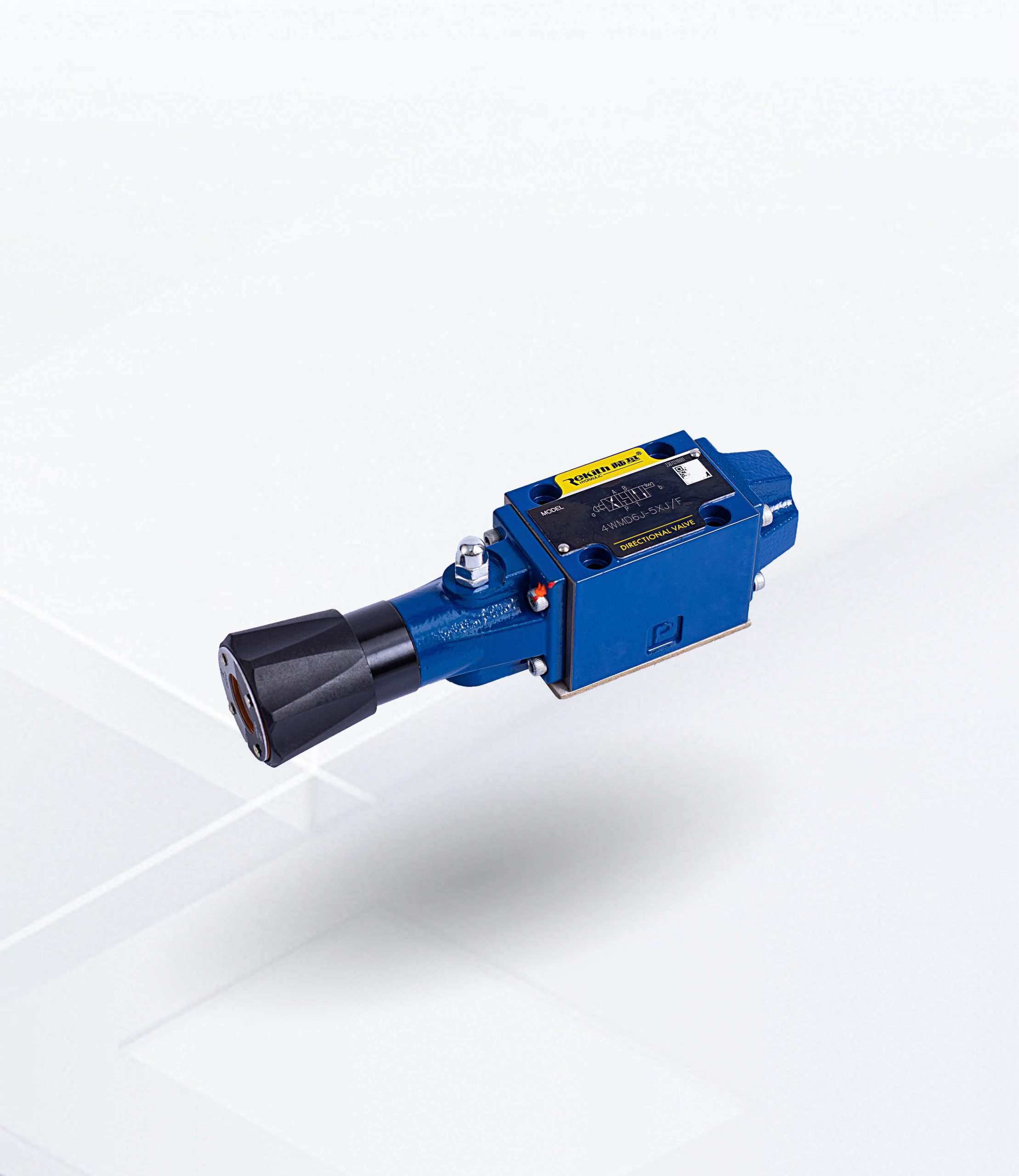

Directional Valve

Featurs:

• Size:10
• Maximum working pressure 315 bar
• Maximum working flow 120 L/min
• Direct acting high-power solenoid operated directional spool valve
• wet-pin DC or AC Solenoids
• The solenoid coil can be rotated by 90°
• Replace the oil without releasing the oil
• individual or central electrical connection,optional
• Optional manual operation

Features

– Directional Poppet Valve

– Direct operated directional ball valve with

solenoid actuation

– Mounting face as per DIN24 340 A

ISO 4401 and CETOP-RP 121H

– Closed port is leak-free isolated

– Keep switch flexibility under high pressure

– Pressure-tight chamber does not need to be

opened when changing of the coil

– Solenoid coil can be rotated through 90°

– With optional concealed manual override

Features

• -Control Valve Electro-Hydraulic Operated
• – Valves used to control the start, stop and
• direction of a fluid flow
• – Electro-hydraulic operation (WEH)
• – Hydraulic operation (WH)
• – Subplate mounting
• porting pattern conforms to DIN24340 form A and ISO4401
• – Spring or pressure centered, spring or hydraulic offset
• – Wet pin DC or AC solenoids, optional
• – Hand override, optional
• – Electrical connection as an individual or
• central connection
• – Shifting time adjustment, optional
• – Pre-loading valve in the P-channel of the main valve, optional
• – Auxiliary equipment to data sheet
• – Stroke adjustment at main spool, optional
• – Stroke adjustment and/or end position indicator, optional
• Mechanical or inductive limit switch
• (proximity type) at the main spool

Features

-Hydraulic Directional Valve Solenoid

-Solenoid and manual control flow

start,stop and direction

-Wet pin solenoid with removable coil

-Solenoid can rotate 90°

-Subplate mounting

Model: Manual Valve

•  Size 6, 10, 16, 25, 32
•  Maximum working pressure 350 bar
•  Maximum working flow 1100 L/min
• Direct operated directional spool valve with handle
• with reset spring or detent,optional
• Subplate mounting

Model: WE6…6XJ

The WE6 Hydraulic Solenoid Directional Valve is a directional spool valve operated by the solenoid. It controls the opening, closing, and flow direction of the liquid flow.

Features:

• With the direct type solenoid operated directional spool valve as the standard type
• Wet-pin DC or AC solenoids with detachable coil
• The solenoid can be rotated by 90°
• Replace the coil without releasing the oil
• Individual or central electrical connection, optional
• Optional manual emergency operation
