In industrial production, the forming press is one of the key pieces of equipment, with the hydraulic system being the core driving force. A well-designed hydraulic system not only provides strong power and precise control for the forming press but also enhances production efficiency, ensures stability and reliability, and supports automation and intelligent production.
- Achieving precise control and stable pressure: Advanced hydraulic control technology ensures precise execution of every process, improving the consistency and accuracy of formed products and reducing the rejection rate.
- High production efficiency with fast response electromagnetic valves: Efficient hydraulic systems shorten the drawing cycle, increase production capacity, and meet the market demand for high-quality products.
- Ensuring stable and reliable operation with adjustable drawing and blank-holding forces: High-quality hydraulic components and a well-designed system extend equipment lifespan, reduce failure rates and downtime, and lower maintenance costs.
Advantages of Rekith hydraulic products:
- Fast response speed of electromagnetic valves, low pressure loss, and high flow rate.
- Electromagnetic coil insulation grade H, resistant to burnout.
- Low temperature rise of the electromagnetic valve coil, ensuring high stability.
- Special surface treatment of valve bodies, preventing corrosion in humid environments.
- Overflow valves ensure stable drawing pressure without oscillation (oil temperature above 70°C).
- Main cylinder support valves feature low leakage, providing excellent pressure-holding performance.
Electromagnetic Directional Valve
Size:6
Maximum Operating Pressure: 350 bar
Maximum Flow Rate: 80 L/min
Size:10
Maximum Operating Pressure: 315 bar
Maximum Flow Rate: 120 L/min
Functional features:
-Maximum flow rate: 150L/min
-High pressure resistance

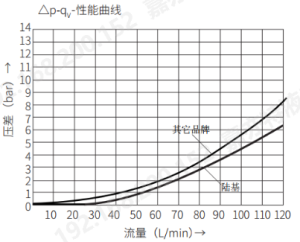

-Small pressure loss
-Fast response
-High cost performance
Rekith brands: commutation lag time: 28ms
Commutation time: 70ms
Reset lag time: 60m
Reset time: 40ms
other brands: commutation lag time: 28ms
Commutation time: 80ms
Reset lag time: 68m
Reset time: 52ms
DB Solenoid Pilot Relief valve
-Size: 10~32
-Maximum working pressure: 350bar
-Maximum flow rate (recommended): 650L/min
Functional Features:
-High flow rate
-Stable pressure without vibration
-Sensitive pressure regulation, fast response
-Compact structure, easy to install
Directly Actuated Sequence Valves
HCG… -2X… /series
-Specifications: 03, 16
-Maximum working pressure: 21MPa
-Maximum flow rate (recommended): 125L/min
